CAST IRON RANGE
W CAST IRON
IE3 & IE4 RANGE

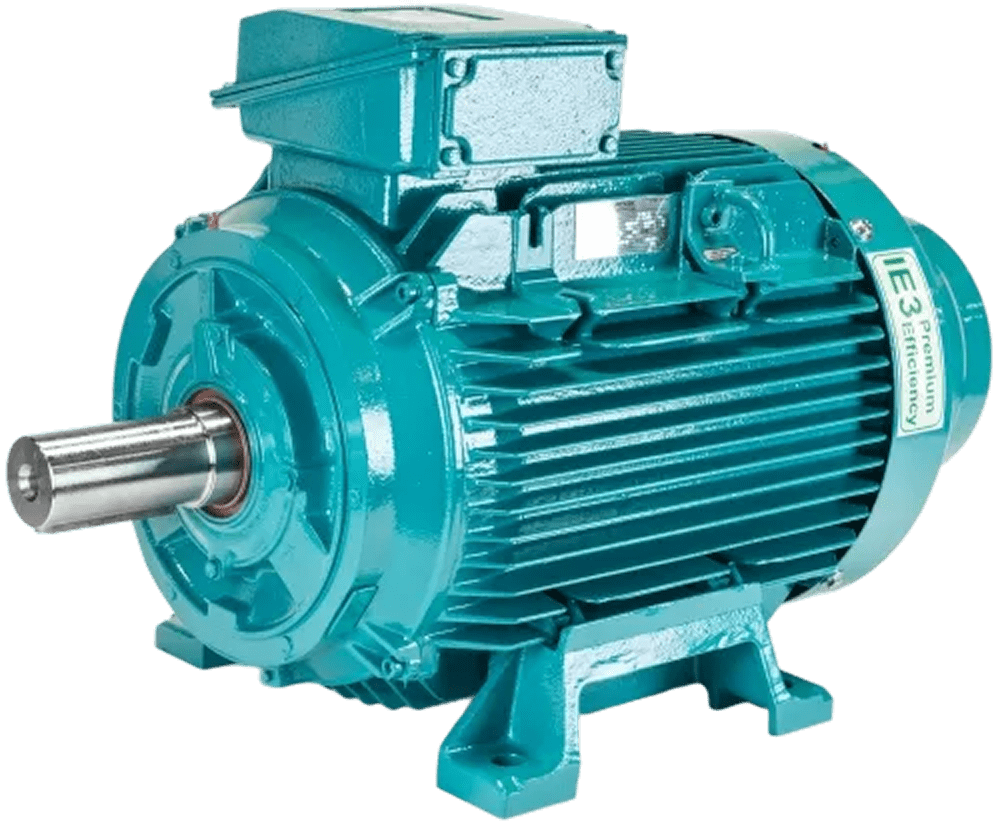

Brook Crompton’s W Cast Iron motors provide robust performance where reliability, efficiency and mechanical strength are critical. With output ratings from 0.75kW to 375kW in frame sizes 80 to 355L, this range is designed for continuous duty in harsh environments, from food and drink processing to minerals, steel, and refrigeration plants.
The W Cast Iron range uses a high-strength cast iron frame, end-shields and terminal box to withstand vibration, shock loading and demanding mounting arrangement. High-efficiency designs help reduce energy consumption over the motor’s life, while precision machining and quality control deliver consistent performance across the full power range. Typical applications include pumps, fans, conveyors, crushers, mixers, roller tables and general processing machinery.
POWER RANGE
0.75 - 375 kW
FRAME SIZES
IEC 80 - 355
POLES / SPEEDS
2, 4, 6 and 8 pole (3000, 1500, 1000, 750 rpm)
EFFICIENCY CLASSES
IE3 and IE4 (EN 60034-30)
ENCLOSURE
IP55 as standard (IP56, IP65, IP66 optional)
MOUNTING
B3 foot, B5 flange, B14 face, B30 pad
VOLTAGE
230/400V (≤4kW), 400/690V (4kW)
INSULATION
Class F, Temp rise to Class B
INDUSTRY USE
Typical Application
The W Cast Iron range is widely used across industries where mechanical robustness and high uptime are essential. The heavy- duty construction makes it a natural choice wherever motors face repeated starting, occasional overloads or aggressive operating conditions.
- Pumps, fans and compressors in process plant
- Conveyors, crushers and screens in aggregates and mining
- Mixers, agitators and roller tables in metals and steel
- Refrigeration and cold-store plant
- Food, beverage and pharmaceutical processing
- General-purpose industrial drives in demanding environments
WHY SPECIFY W CAST IRON
KEY BENEFITS OF W CAST IRON MOTORS
Heavy-duty cast iron construction
High-strength cast iron housing, end-shields and terminal box withstand vibration, shock loading and demanding mounting arrangements, making the W range ideal for arduous industrial environments.
IP55 protection as standard
All motors carry IP55 ingress protection as standard, with IP56, IP65 and IP66 available as options for dusty, damp or wash-down environments.
High efficiency - IE3 and IE4
IE3 and IE3 efficiency variants are available across the range, helping reduce energy consumption and comply with current Ecodesign (ErP) requirements. IE4 is available from 75kW to 200kW in 2, 4 and 6 Pole.
Flexible mounting options
B3, B5, B14 and B30 pad options are available as standard, with combination arrangements (B35, B34) also offered for maximum installation flexibility.
Wide voltage and frequency range
Dual-voltage windings - 230/400V (upto 3kW) and 400/690V (4kW and above) - with 50Hz and 60Hz capability allow operation across many region and supply conditions.
Inverter-duty capability
Suitable for use with variable speed drives within the recommended derating guidelines.
DATA SHEETS
TECHNICAL SPECIFICATIONS
Detailed performance data and frame sizing for the IE3 Cast Iron motor range.
| Part Number | Range | kW | Speed | Frame Size | IE Rating | Mounting |
|---|---|---|---|---|---|---|
| 080W208300T | W Cast Iron | 0.75 | 2 Pole (3000rpm) | WP-DF80MM | IE3 Efficiency | B3 Foot Mounted |
| 080W208301T | W Cast Iron | 1.1 | 2 Pole (3000rpm) | WP-DF80MS | IE3 Efficiency | B3 Foot Mounted |
| 090W228300T | W Cast Iron | 1.5 | 2 Pole (3000rpm) | WP-DF90LMX | IE3 Efficiency | B3 Foot Mounted |
| 090W228301T | W Cast Iron | 2.2 | 2 Pole (3000rpm) | WP-DF90LSX | IE3 Efficiency | B3 Foot Mounted |
| 100W248300T | W Cast Iron | 3 | 2 Pole (3000rpm) | WP-DF100LMF | IE3 Efficiency | B3 Foot Mounted |
| 112W268300T | W Cast Iron | 4 | 2 Pole (3000rpm) | WP-DF112MR | IE3 Efficiency | B3 Foot Mounted |
| 132W328300T | W Cast Iron | 5.5 | 2 Pole (3000rpm) | WP-DF132SG | IE3 Efficiency | B3 Foot Mounted |
| 132W328301T | W Cast Iron | 7.5 | 2 Pole (3000rpm) | WP-DF132SMX | IE3 Efficiency | B3 Foot Mounted |
| 160W418300T | W Cast Iron | 11 | 2 Pole (3000rpm) | WP-DF160MJ | IE3 Efficiency | B3 Foot Mounted |
| 160W418301T | W Cast Iron | 15 | 2 Pole (3000rpm) | WP-DF160MR | IE3 Efficiency | B3 Foot Mounted |
| 160W418302T | W Cast Iron | 18.5 | 2 Pole (3000rpm) | WP-DF160LT | IE3 Efficiency | B3 Foot Mounted |
| 180W478300T | W Cast Iron | 22 | 2 Pole (3000rpm) | WP-DF180MF | IE3 Efficiency | B3 Foot Mounted |
| 200W312030 | W Cast Iron | 30 | 2 Pole (3000rpm) | WP-UDF200LNX | IE3 Efficiency | B3 Foot Mounted |
| 200W312037 | W Cast Iron | 37 | 2 Pole (3000rpm) | WP-UDF200LPX | IE3 Efficiency | B3 Foot Mounted |
| 225W312045 | W Cast Iron | 45 | 2 Pole (3000rpm) | WP-UDF225MN | IE3 Efficiency | B3 Foot Mounted |
| 250W312055 | W Cast Iron | 55 | 2 Pole (3000rpm) | WP-UDF250MNE | IE3 Efficiency | B3 Foot Mounted |
| 280W312075 | W Cast Iron | 75 | 2 Pole (3000rpm) | WP-UDF280SNE | IE3 Efficiency | B3 Foot Mounted |
| 280W312090 | W Cast Iron | 90 | 2 Pole (3000rpm) | WP-UDF280MNE | IE3 Efficiency | B3 Foot Mounted |
| 315W312110 | W Cast Iron | 110 | 2 Pole (3000rpm) | WP-UDF315SNE | IE3 Efficiency | B3 Foot Mounted |
| 315W312132 | W Cast Iron | 132 | 2 Pole (3000rpm) | WP-UDF315MNE | IE3 Efficiency | B3 Foot Mounted |
| 315W312160 | W Cast Iron | 160 | 2 Pole (3000rpm) | WP-UDF315MP | IE3 Efficiency | B3 Foot Mounted |
| 315W312200 | W Cast Iron | 200 | 2 Pole (3000rpm) | WP-UDF315LP | IE3 Efficiency | B3 Foot Mounted |
| 355W312225 | W Cast Iron | 225 | 2 Pole (3000rpm) | WP-UDF355SG | IE3 Efficiency | B3 Foot Mounted |
| 355W312250 | W Cast Iron | 250 | 2 Pole (3000rpm) | WP-UDF355SJ | IE3 Efficiency | B3 Foot Mounted |
| 355W312280 | W Cast Iron | 280 | 2 Pole (3000rpm) | WP-UDF355SN | IE3 Efficiency | B3 Foot Mounted |
| 355W315315 | W Cast Iron | 315 | 2 Pole (3000rpm) | WP-UDF355MJ | IE3 Efficiency | B3 Foot Mounted |
| 355W315355 | W Cast Iron | 355 | 2 Pole (3000rpm) | WP-UDF355MN | IE3 Efficiency | B3 Foot Mounted |
| 355W312375 | W Cast Iron | 375 | 2 Pole (3000rpm) | WP-UDF355LN | IE3 Efficiency | B3 Foot Mounted |
| 080W208310T | W Cast Iron | 0.75 | 2 Pole (3000rpm) | WP-DF80MM-D | IE3 Efficiency | B5 D Flange Mounted |
| 080W208311T | W Cast Iron | 1.1 | 2 Pole (3000rpm) | WP-DF80MS-D | IE3 Efficiency | B5 D Flange Mounted |
| 090W228310T | W Cast Iron | 1.5 | 2 Pole (3000rpm) | WP-DF90LMX-D | IE3 Efficiency | B5 D Flange Mounted |
| 090W228311T | W Cast Iron | 2.2 | 2 Pole (3000rpm) | WP-DF90LSX-D | IE3 Efficiency | B5 D Flange Mounted |
| 100W248310T | W Cast Iron | 3 | 2 Pole (3000rpm) | WP-DF100LMF-D | IE3 Efficiency | B5 D Flange Mounted |
| 112W268310T | W Cast Iron | 4 | 2 Pole (3000rpm) | WP-DF112MR-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328310T | W Cast Iron | 5.5 | 2 Pole (3000rpm) | WP-DF132SG-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328311T | W Cast Iron | 7.5 | 2 Pole (3000rpm) | WP-DF132SMX-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418310T | W Cast Iron | 11 | 2 Pole (3000rpm) | WP-DF160MJ-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418311T | W Cast Iron | 15 | 2 Pole (3000rpm) | WP-DF160MR-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418312T | W Cast Iron | 18.5 | 2 Pole (3000rpm) | WP-DF160LT-D | IE3 Efficiency | B5 D Flange Mounted |
| 180W478310T | W Cast Iron | 22 | 2 Pole (3000rpm) | WP-DF180MF-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 30 | 2 Pole (3000rpm) | WP-UDF200LNX-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 37 | 2 Pole (3000rpm) | WP-UDF200LPX-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 45 | 2 Pole (3000rpm) | WP-UDF225MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 55 | 2 Pole (3000rpm) | WP-UDF250MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 75 | 2 Pole (3000rpm) | WP-UDF280SNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 90 | 2 Pole (3000rpm) | WP-UDF280MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 110 | 2 Pole (3000rpm) | WP-UDF315SNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 132 | 2 Pole (3000rpm) | WP-UDF315MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 160 | 2 Pole (3000rpm) | WP-UDF315MP-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 200 | 2 Pole (3000rpm) | WP-UDF315LP-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 225 | 2 Pole (3000rpm) | WP-UDF355SG-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 250 | 2 Pole (3000rpm) | WP-UDF355SJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 280 | 2 Pole (3000rpm) | WP-UDF355SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 315 | 2 Pole (3000rpm) | WP-UDF355MJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 355 | 2 Pole (3000rpm) | WP-UDF355MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 375 | 2 Pole (3000rpm) | WP-UDF355LN-D | IE3 Efficiency | B5 D Flange Mounted |
| 080W207500T | W Cast Iron | 0.75 | 4 Pole (1500rpm) | WP-DF80MS | IE3 Efficiency | B3 Foot Mounted |
| 090W228500T | W Cast Iron | 1.1 | 4 Pole (1500rpm) | WP-DF90LTX | IE3 Efficiency | B3 Foot Mounted |
| 090W228501T | W Cast Iron | 1.5 | 4 Pole (1500rpm) | WP-DF90LWX | IE3 Efficiency | B3 Foot Mounted |
| 100W248500T | W Cast Iron | 2.2 | 4 Pole (1500rpm) | WP-DF100LRF | IE3 Efficiency | B3 Foot Mounted |
| 100W248501T | W Cast Iron | 3 | 4 Pole (1500rpm) | WP-DF100LTF | IE3 Efficiency | B3 Foot Mounted |
| 112W268500T | W Cast Iron | 4 | 4 Pole (1500rpm) | WP-DF112MWX | IE3 Efficiency | B3 Foot Mounted |
| 132W328500T | W Cast Iron | 5.5 | 4 Pole (1500rpm) | WP-DF132STX | IE3 Efficiency | B3 Foot Mounted |
| 132W328501T | W Cast Iron | 7.5 | 4 Pole (1500rpm) | WP-DF132MVX | IE3 Efficiency | B3 Foot Mounted |
| 160W418500T | W Cast Iron | 11 | 4 Pole (1500rpm) | WP-DF160MR | IE3 Efficiency | B3 Foot Mounted |
| 160W418501T | W Cast Iron | 15 | 4 Pole (1500rpm) | WP-DF160LU | IE3 Efficiency | B3 Foot Mounted |
| 180W478500T | W Cast Iron | 18.5 | 4 Pole (1500rpm) | WP-DF180ME | IE3 Efficiency | B3 Foot Mounted |
| 180W478501T | W Cast Iron | 22 | 4 Pole (1500rpm) | WP-DF180LM | IE3 Efficiency | B3 Foot Mounted |
| 200W314030 | W Cast Iron | 30 | 4 Pole (1500rpm) | WP-UDF200LPX | IE3 Efficiency | B3 Foot Mounted |
| 225W314037 | W Cast Iron | 37 | 4 Pole (1500rpm) | WP-UDF225SR | IE3 Efficiency | B3 Foot Mounted |
| 225W314045 | W Cast Iron | 45 | 4 Pole (1500rpm) | WP-UDF225MN | IE3 Efficiency | B3 Foot Mounted |
| 250W314055 | W Cast Iron | 55 | 4 Pole (1500rpm) | WP-UDF250MPE | IE3 Efficiency | B3 Foot Mounted |
| 280W314075 | W Cast Iron | 75 | 4 Pole (1500rpm) | WP-UDF280SNE | IE3 Efficiency | B3 Foot Mounted |
| 280W314090 | W Cast Iron | 90 | 4 Pole (1500rpm) | WP-UDF280MNE | IE3 Efficiency | B3 Foot Mounted |
| 315W314110 | W Cast Iron | 110 | 4 Pole (1500rpm) | WP-UDF315SNE | IE3 Efficiency | B3 Foot Mounted |
| 315W314132 | W Cast Iron | 132 | 4 Pole (1500rpm) | WP-UDF315MNE | IE3 Efficiency | B3 Foot Mounted |
| 315W314160 | W Cast Iron | 160 | 4 Pole (1500rpm) | WP-UDF315MP | IE3 Efficiency | B3 Foot Mounted |
| 315W314200 | W Cast Iron | 200 | 4 Pole (1500rpm) | WP-UDF315LN | IE3 Efficiency | B3 Foot Mounted |
| 355W314225 | W Cast Iron | 225 | 4 Pole (1500rpm) | WP-UDF355SG | IE3 Efficiency | B3 Foot Mounted |
| 355W314250 | W Cast Iron | 250 | 4 Pole (1500rpm) | WP-UDF355SJ | IE3 Efficiency | B3 Foot Mounted |
| 355W314280 | W Cast Iron | 280 | 4 Pole (1500rpm) | WP-UDF355SN | IE3 Efficiency | B3 Foot Mounted |
| 355W314315 | W Cast Iron | 315 | 4 Pole (1500rpm) | WP-UDF355MJ | IE3 Efficiency | B3 Foot Mounted |
| 355W314355 | W Cast Iron | 355 | 4 Pole (1500rpm) | WP-UDF355MN | IE3 Efficiency | B3 Foot Mounted |
| 355W314375 | W Cast Iron | 375 | 4 Pole (1500rpm) | WP-UDF355LN | IE3 Efficiency | B3 Foot Mounted |
| 080W207510T | W Cast Iron | 0.75 | 4 Pole (1500rpm) | WP-DF80MS-D | IE3 Efficiency | B5 D Flange Mounted |
| 090W228510T | W Cast Iron | 1.1 | 4 Pole (1500rpm) | WP-DF90LTX-D | IE3 Efficiency | B5 D Flange Mounted |
| 090W228511T | W Cast Iron | 1.5 | 4 Pole (1500rpm) | WP-DF90LWX-D | IE3 Efficiency | B5 D Flange Mounted |
| 100W248510T | W Cast Iron | 2.2 | 4 Pole (1500rpm) | WP-DF100LRF-D | IE3 Efficiency | B5 D Flange Mounted |
| 100W248511T | W Cast Iron | 3 | 4 Pole (1500rpm) | WP-DF100LTF-D | IE3 Efficiency | B5 D Flange Mounted |
| 112W268510T | W Cast Iron | 4 | 4 Pole (1500rpm) | WP-DF112MWX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328510T | W Cast Iron | 5.5 | 4 Pole (1500rpm) | WP-DF132STX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328511T | W Cast Iron | 7.5 | 4 Pole (1500rpm) | WP-DF132MVX-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418510T | W Cast Iron | 11 | 4 Pole (1500rpm) | WP-DF160MR-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418511T | W Cast Iron | 15 | 4 Pole (1500rpm) | WP-DF160LU-D | IE3 Efficiency | B5 D Flange Mounted |
| 180W478510T | W Cast Iron | 18.5 | 4 Pole (1500rpm) | WP-DF180ME-D | IE3 Efficiency | B5 D Flange Mounted |
| 180W478511T | W Cast Iron | 22 | 4 Pole (1500rpm) | WP-DF180LM-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 30 | 4 Pole (1500rpm) | WP-UDF200LPX-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 37 | 4 Pole (1500rpm) | WP-UDF225SR-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 45 | 4 Pole (1500rpm) | WP-UDF225MN-D | IE3 Efficiency | B5 D Flange Mounted |
| 250W500345 | W Cast Iron | 55 | 4 Pole (1500rpm) | WP-UDF250MPE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 75 | 4 Pole (1500rpm) | WP-UDF280SNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 90 | 4 Pole (1500rpm) | WP-UDF280MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 110 | 4 Pole (1500rpm) | WP-UDF315SNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 132 | 4 Pole (1500rpm) | WP-UDF315MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 160 | 4 Pole (1500rpm) | WP-UDF315MP-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 200 | 4 Pole (1500rpm) | WP-UDF315LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 225 | 4 Pole (1500rpm) | WP-UDF355SG-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 250 | 4 Pole (1500rpm) | WP-UDF355SJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 280 | 4 Pole (1500rpm) | WP-UDF355SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 315 | 4 Pole (1500rpm) | WP-UDF355MJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 355 | 4 Pole (1500rpm) | WP-UDF355MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 375 | 4 Pole (1500rpm) | WP-UDF355LN -D | IE3 Efficiency | B5 D Flange Mounted |
| 090W228700T | W Cast Iron | 0.75 | 6 Pole (1000rpm) | WP-DF90LWX | IE3 Efficiency | B3 Foot Mounted |
| 100W248700T | W Cast Iron | 1.5 | 6 Pole (1000rpm) | WP-DF100LRF | IE3 Efficiency | B3 Foot Mounted |
| 112W268700T | W Cast Iron | 2.2 | 6 Pole (1000rpm) | WP-DF112MWX | IE3 Efficiency | B3 Foot Mounted |
| 132W328700T | W Cast Iron | 3 | 6 Pole (1000rpm) | WP-DF132SMX | IE3 Efficiency | B3 Foot Mounted |
| 132W328701T | W Cast Iron | 4 | 6 Pole (1000rpm) | WP-DF132MTX | IE3 Efficiency | B3 Foot Mounted |
| 132W328702T | W Cast Iron | 5.5 | 6 Pole (1000rpm) | WP-DF132MVX | IE3 Efficiency | B3 Foot Mounted |
| 160W418700T | W Cast Iron | 7.5 | 6 Pole (1000rpm) | WP-DF160MM | IE3 Efficiency | B3 Foot Mounted |
| 160W418701T | W Cast Iron | 11 | 6 Pole (1000rpm) | WP-DF160LV | IE3 Efficiency | B3 Foot Mounted |
| 180W478700T | W Cast Iron | 15 | 6 Pole (1000rpm) | WP-DF180LR | IE3 Efficiency | B3 Foot Mounted |
| 200W316018 | W Cast Iron | 18.5 | 6 Pole (1000rpm) | WP-UDF200LNX | IE3 Efficiency | B3 Foot Mounted |
| 200W316022 | W Cast Iron | 22 | 6 Pole (1000rpm) | WP-UDF200LN | IE3 Efficiency | B3 Foot Mounted |
| 225W316030 | W Cast Iron | 30 | 6 Pole (1000rpm) | WP-UDF225MN | IE3 Efficiency | B3 Foot Mounted |
| 250W316037 | W Cast Iron | 37 | 6 Pole (1000rpm) | WP-UDF250MNE | IE3 Efficiency | B3 Foot Mounted |
| 280W316045 | W Cast Iron | 45 | 6 Pole (1000rpm) | WP-UDF280SNE | IE3 Efficiency | B3 Foot Mounted |
| 280W316055 | W Cast Iron | 55 | 6 Pole (1000rpm) | WP-UDF280MNE | IE3 Efficiency | B3 Foot Mounted |
| 315W316075 | W Cast Iron | 75 | 6 Pole (1000rpm) | WP-UDF315SNE | IE3 Efficiency | B3 Foot Mounted |
| 315W316090 | W Cast Iron | 90 | 6 Pole (1000rpm) | WP-UDF315MNE | IE3 Efficiency | B3 Foot Mounted |
| 315W316110 | W Cast Iron | 110 | 6 Pole (1000rpm) | WP-UDF315MN | IE3 Efficiency | B3 Foot Mounted |
| 315W316132 | W Cast Iron | 132 | 6 Pole (1000rpm) | WP-UDF315LN | IE3 Efficiency | B3 Foot Mounted |
| 355W316150 | W Cast Iron | 150 | 6 Pole (1000rpm) | WP-UDF355SG | IE3 Efficiency | B3 Foot Mounted |
| 355W316160 | W Cast Iron | 160 | 6 Pole (1000rpm) | WP-UDF355SG | IE3 Efficiency | B3 Foot Mounted |
| 355W316185 | W Cast Iron | 185 | 6 Pole (1000rpm) | WP-UDF355SJ | IE3 Efficiency | B3 Foot Mounted |
| 355W316200 | W Cast Iron | 200 | 6 Pole (1000rpm) | WP-UDF355SP | IE3 Efficiency | B3 Foot Mounted |
| 355W316225 | W Cast Iron | 225 | 6 Pole (1000rpm) | WP-UDF355MN | IE3 Efficiency | B3 Foot Mounted |
| 355W316250 | W Cast Iron | 250 | 6 Pole (1000rpm) | WP-UDF355MN | IE3 Efficiency | B3 Foot Mounted |
| 355W316280 | W Cast Iron | 280 | 6 Pole (1000rpm) | WP-UDF355LJ | IE3 Efficiency | B3 Foot Mounted |
| 355W316315 | W Cast Iron | 315 | 6 Pole (1000rpm) | WP-UDF355LN | IE3 Efficiency | B3 Foot Mounted |
| 090W228710T | W Cast Iron | 0.75 | 6 Pole (1000rpm) | WP-DF90LWX-D | IE3 Efficiency | B5 D Flange Mounted |
| 100W248710T | W Cast Iron | 1.5 | 6 Pole (1000rpm) | WP-DF100LRF-D | IE3 Efficiency | B5 D Flange Mounted |
| 112W268710T | W Cast Iron | 2.2 | 6 Pole (1000rpm) | WP-DF112MWX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328710T | W Cast Iron | 3 | 6 Pole (1000rpm) | WP-DF132SMX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328711T | W Cast Iron | 4 | 6 Pole (1000rpm) | WP-DF132MTX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328712T | W Cast Iron | 5.5 | 6 Pole (1000rpm) | WP-DF132MVX-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418710T | W Cast Iron | 7.5 | 6 Pole (1000rpm) | WP-DF160MM-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418711T | W Cast Iron | 11 | 6 Pole (1000rpm) | WP-DF160LV-D | IE3 Efficiency | B5 D Flange Mounted |
| 180W478710T | W Cast Iron | 15 | 6 Pole (1000rpm) | WP-DF180LR-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 18.5 | 6 Pole (1000rpm) | WP-UDF200LNX-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 22 | 6 Pole (1000rpm) | WP-UDF200LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 30 | 6 Pole (1000rpm) | WP-UDF225MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 37 | 6 Pole (1000rpm) | WP-UDF250MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 45 | 6 Pole (1000rpm) | WP-UDF280SNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 55 | 6 Pole (1000rpm) | WP-UDF280MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 75 | 6 Pole (1000rpm) | WP-UDF315SNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 90 | 6 Pole (1000rpm) | WP-UDF315MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 110 | 6 Pole (1000rpm) | WP-UDF315MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 132 | 6 Pole (1000rpm) | WP-UDF315LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 150 | 6 Pole (1000rpm) | WP-UDF355SG-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 160 | 6 Pole (1000rpm) | WP-UDF355SG-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 185 | 6 Pole (1000rpm) | WP-UDF355SJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 200 | 6 Pole (1000rpm) | WP-UDF355SP-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 225 | 6 Pole (1000rpm) | WP-UDF355MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 250 | 6 Pole (1000rpm) | WP-UDF355MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 280 | 6 Pole (1000rpm) | WP-UDF355LJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 315 | 6 Pole (1000rpm) | WP-UDF355LN-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328900T | W Cast Iron | 2.2 | 8 Pole (750rpm) | WP-DF132MT | IE3 Efficiency | B3 Foot Mounted |
| 160W418900T | W Cast Iron | 3 | 8 Pole (750rpm) | WP-DF160ME | IE3 Efficiency | B3 Foot Mounted |
| 160W418901T | W Cast Iron | 4 | 8 Pole (750rpm) | WP-DF160MM | IE3 Efficiency | B3 Foot Mounted |
| 160W418902T | W Cast Iron | 5.5 | 8 Pole (750rpm) | WP-DF160LV | IE3 Efficiency | B3 Foot Mounted |
| 160W418903T | W Cast Iron | 7.5 | 8 Pole (750rpm) | WP-DF160LX | IE3 Efficiency | B3 Foot Mounted |
| 180W478900T | W Cast Iron | 11 | 8 Pole (750rpm) | WP-DF180LR | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 15 | 8 Pole (750rpm) | WP-UDF200LN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 18.5 | 8 Pole (750rpm) | WP-UDF225SN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 22 | 8 Pole (750rpm) | WP-UDF225MN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 30 | 8 Pole (750rpm) | WP-UDF250MNE | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 37 | 8 Pole (750rpm) | WP-UDF280SNE | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 45 | 8 Pole (750rpm) | WP-UDF280MNE | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 55 | 8 Pole (750rpm) | WP-UDF315SNE | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 75 | 8 Pole (750rpm) | WP-UDF315MNE | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 90 | 8 Pole (750rpm) | WP-UDF315MN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 110 | 8 Pole (750rpm) | WP-UDF315LN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 132 | 8 Pole (750rpm) | WP-UDF355SJ | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 150 | 8 Pole (750rpm) | WP-UDF355SN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 160 | 8 Pole (750rpm) | WP-UDF355SN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 185 | 8 Pole (750rpm) | WP-UDF355MJ | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 200 | 8 Pole (750rpm) | WP-UDF355MN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 225 | 8 Pole (750rpm) | WP-UDF355LN | IE3 Efficiency | B3 Foot Mounted |
| 132W328910T | W Cast Iron | 2.2 | 8 Pole (750rpm) | WP-DF132MT-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418910T | W Cast Iron | 3 | 8 Pole (750rpm) | WP-DF160ME-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418911T | W Cast Iron | 4 | 8 Pole (750rpm) | WP-DF160MM-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418912T | W Cast Iron | 5.5 | 8 Pole (750rpm) | WP-DF160LV-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418913T | W Cast Iron | 7.5 | 8 Pole (750rpm) | WP-DF160LX-D | IE3 Efficiency | B5 D Flange Mounted |
| 180W478910T | W Cast Iron | 11 | 8 Pole (750rpm) | WP-DF180LR-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 15 | 8 Pole (750rpm) | WP-UDF200LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 18.5 | 8 Pole (750rpm) | WP-UDF225SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 22 | 8 Pole (750rpm) | WP-UDF225MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 30 | 8 Pole (750rpm) | WP-UDF250MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 37 | 8 Pole (750rpm) | WP-UDF280SNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 45 | 8 Pole (750rpm) | WP-UDF280MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 55 | 8 Pole (750rpm) | WP-UDF315SNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 75 | 8 Pole (750rpm) | WP-UDF315MNE-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 90 | 8 Pole (750rpm) | WP-UDF315MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 110 | 8 Pole (750rpm) | WP-UDF315LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 132 | 8 Pole (750rpm) | WP-UDF355SJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 150 | 8 Pole (750rpm) | WP-UDF355SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 160 | 8 Pole (750rpm) | WP-UDF355SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 185 | 8 Pole (750rpm) | WP-UDF355MJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 200 | 8 Pole (750rpm) | WP-UDF355MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 225 | 8 Pole (750rpm) | WP-UDF355LN-D | IE3 Efficiency | B5 D Flange Mounted |
| 080W208300T | W Cast Iron | 0.75 | 2 Pole (3000rpm) | WP-DF80MM | IE3 Efficiency | B3 Foot Mounted |
| 080W208301T | W Cast Iron | 1.1 | 2 Pole (3000rpm) | WP-DF80MS | IE3 Efficiency | B3 Foot Mounted |
| 090W228300T | W Cast Iron | 1.5 | 2 Pole (3000rpm) | WP-DF90LMX | IE3 Efficiency | B3 Foot Mounted |
| 090W228301T | W Cast Iron | 2.2 | 2 Pole (3000rpm) | WP-DF90LSX | IE3 Efficiency | B3 Foot Mounted |
| 100W248300T | W Cast Iron | 3 | 2 Pole (3000rpm) | WP-DF100LMF | IE3 Efficiency | B3 Foot Mounted |
| 112W268300T | W Cast Iron | 4 | 2 Pole (3000rpm) | WP-DF112MR | IE3 Efficiency | B3 Foot Mounted |
| 132W328300T | W Cast Iron | 5.5 | 2 Pole (3000rpm) | WP-DF132SG | IE3 Efficiency | B3 Foot Mounted |
| 132W328301T | W Cast Iron | 7.5 | 2 Pole (3000rpm) | WP-DF132SMX | IE3 Efficiency | B3 Foot Mounted |
| 160W418300T | W Cast Iron | 11 | 2 Pole (3000rpm) | WP-DF160MJ | IE3 Efficiency | B3 Foot Mounted |
| 160W418301T | W Cast Iron | 15 | 2 Pole (3000rpm) | WP-DF160MR | IE3 Efficiency | B3 Foot Mounted |
| 160W418302T | W Cast Iron | 18.5 | 2 Pole (3000rpm) | WP-DF160LT | IE3 Efficiency | B3 Foot Mounted |
| 180W478300T | W Cast Iron | 22 | 2 Pole (3000rpm) | WP-DF180MF | IE3 Efficiency | B3 Foot Mounted |
| 200W512030 | W Cast Iron | 30 | 2 Pole (3000rpm) | WP-DF200LNX | IE3 Efficiency | B3 Foot Mounted |
| 200W512037 | W Cast Iron | 37 | 2 Pole (3000rpm) | WP-DF200LPX | IE3 Efficiency | B3 Foot Mounted |
| 225W512045 | W Cast Iron | 45 | 2 Pole (3000rpm) | WP-DF225MN | IE3 Efficiency | B3 Foot Mounted |
| 250W512055 | W Cast Iron | 55 | 2 Pole (3000rpm) | WP-DF250SN | IE3 Efficiency | B3 Foot Mounted |
| 250W932075 | W Cast Iron | 75 | 2 Pole (3000rpm) | WP-DF250MN | IE3 Efficiency | B3 Foot Mounted |
| 280W512090 | W Cast Iron | 90 | 2 Pole (3000rpm) | WP-DF280SN | IE3 Efficiency | B3 Foot Mounted |
| 280W942110 | W Cast Iron | 110 | 2 Pole (3000rpm) | WP-DF280MN | IE3 Efficiency | B3 Foot Mounted |
| 315W512132 | W Cast Iron | 132 | 2 Pole (3000rpm) | WP-DF315SN | IE3 Efficiency | B3 Foot Mounted |
| 315W512160 | W Cast Iron | 160 | 2 Pole (3000rpm) | WP-DF315MP | IE3 Efficiency | B3 Foot Mounted |
| 315W512200 | W Cast Iron | 200 | 2 Pole (3000rpm) | WP-DF315LP | IE3 Efficiency | B3 Foot Mounted |
| 355W512225 | W Cast Iron | 225 | 2 Pole (3000rpm) | WP-DF355SG | IE3 Efficiency | B3 Foot Mounted |
| 355W512250 | W Cast Iron | 250 | 2 Pole (3000rpm) | WP-DF355SJ | IE3 Efficiency | B3 Foot Mounted |
| 355W512280 | W Cast Iron | 280 | 2 Pole (3000rpm) | WP-DF355SN | IE3 Efficiency | B3 Foot Mounted |
| 355W512315 | W Cast Iron | 315 | 2 Pole (3000rpm) | WP-DF355MJ | IE3 Efficiency | B3 Foot Mounted |
| 080W208310T | W Cast Iron | 0.75 | 2 Pole (3000rpm) | WP-DF80MM-D | IE3 Efficiency | B5 D Flange Mounted |
| 080W208311T | W Cast Iron | 1.1 | 2 Pole (3000rpm) | WP-DF80MS-D | IE3 Efficiency | B5 D Flange Mounted |
| 090W228310T | W Cast Iron | 1.5 | 2 Pole (3000rpm) | WP-DF90LMX-D | IE3 Efficiency | B5 D Flange Mounted |
| 090W228311T | W Cast Iron | 2.2 | 2 Pole (3000rpm) | WP-DF90LSX-D | IE3 Efficiency | B5 D Flange Mounted |
| 100W248310T | W Cast Iron | 3 | 2 Pole (3000rpm) | WP-DF100LMF-D | IE3 Efficiency | B5 D Flange Mounted |
| 112W268310T | W Cast Iron | 4 | 2 Pole (3000rpm) | WP-DF112MR-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328310T | W Cast Iron | 5.5 | 2 Pole (3000rpm) | WP-DF132SG-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328311T | W Cast Iron | 7.5 | 2 Pole (3000rpm) | WP-DF132SMX-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418310T | W Cast Iron | 11 | 2 Pole (3000rpm) | WP-DF160MJ-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418311T | W Cast Iron | 15 | 2 Pole (3000rpm) | WP-DF160MR-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418312T | W Cast Iron | 18.5 | 2 Pole (3000rpm) | WP-DF160LT-D | IE3 Efficiency | B5 D Flange Mounted |
| 180W478310T | W Cast Iron | 22 | 2 Pole (3000rpm) | WP-DF180MF-D | IE3 Efficiency | B5 D Flange Mounted |
| 200W500254 | W Cast Iron | 30 | 2 Pole (3000rpm) | WP-DF200LNX-D | IE3 Efficiency | B5 D Flange Mounted |
| 200W500294 | W Cast Iron | 37 | 2 Pole (3000rpm) | WP-DF200LPX-D | IE3 Efficiency | B5 D Flange Mounted |
| 225W500342 | W Cast Iron | 45 | 2 Pole (3000rpm) | WP-DF225MN-D | IE3 Efficiency | B5 D Flange Mounted |
| 250W500390 | W Cast Iron | 55 | 2 Pole (3000rpm) | WP-DF250SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 75 | 2 Pole (3000rpm) | WP-DF250MN-D | IE3 Efficiency | B5 D Flange Mounted |
| 280W500247 | W Cast Iron | 90 | 2 Pole (3000rpm) | WP-DF280SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 110 | 2 Pole (3000rpm) | WP-DF280MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 132 | 2 Pole (3000rpm) | WP-DF315SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 160 | 2 Pole (3000rpm) | WP-DF315MP-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 200 | 2 Pole (3000rpm) | WP-DF315LP-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 225 | 2 Pole (3000rpm) | WP-DF355SG-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 250 | 2 Pole (3000rpm) | WP-DF355SJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 280 | 2 Pole (3000rpm) | WP-DF355SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 315 | 2 Pole (3000rpm) | WP-DF355MJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 355 | 2 Pole (3000rpm) | WP-DF355MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 375 | 2 Pole (3000rpm) | WP-DF355LN-D | IE3 Efficiency | B5 D Flange Mounted |
| 080W208500T | W Cast Iron | 0.75 | 4 Pole (1500rpm) | WP-DF80MS | IE3 Efficiency | B3 Foot Mounted |
| 090W228500T | W Cast Iron | 1.1 | 4 Pole (1500rpm) | WP-DF90LTX | IE3 Efficiency | B3 Foot Mounted |
| 090W228501T | W Cast Iron | 1.5 | 4 Pole (1500rpm) | WP-DF90LWX | IE3 Efficiency | B3 Foot Mounted |
| 100W248500T | W Cast Iron | 2.2 | 4 Pole (1500rpm) | WP-DF100LRF | IE3 Efficiency | B3 Foot Mounted |
| 100W248501T | W Cast Iron | 3 | 4 Pole (1500rpm) | WP-DF100LTF | IE3 Efficiency | B3 Foot Mounted |
| 112W268500T | W Cast Iron | 4 | 4 Pole (1500rpm) | WP-DF112MWX | IE3 Efficiency | B3 Foot Mounted |
| 132W328500T | W Cast Iron | 5.5 | 4 Pole (1500rpm) | WP-DF132STX | IE3 Efficiency | B3 Foot Mounted |
| 132W328501T | W Cast Iron | 7.5 | 4 Pole (1500rpm) | WP-DF132MVX | IE3 Efficiency | B3 Foot Mounted |
| 160W418500T | W Cast Iron | 11 | 4 Pole (1500rpm) | WP-DF160MR | IE3 Efficiency | B3 Foot Mounted |
| 160W418501T | W Cast Iron | 15 | 4 Pole (1500rpm) | WP-DF160LU | IE3 Efficiency | B3 Foot Mounted |
| 180W478500T | W Cast Iron | 18.5 | 4 Pole (1500rpm) | WP-DF180ME | IE3 Efficiency | B3 Foot Mounted |
| 180W478501T | W Cast Iron | 22 | 4 Pole (1500rpm) | WP-DF180LM | IE3 Efficiency | B3 Foot Mounted |
| 200W514030 | W Cast Iron | 30 | 4 Pole (1500rpm) | WP-DF200LPX | IE3 Efficiency | B3 Foot Mounted |
| 225W514037 | W Cast Iron | 37 | 4 Pole (1500rpm) | WP-DF225SR | IE3 Efficiency | B3 Foot Mounted |
| 225W514045 | W Cast Iron | 45 | 4 Pole (1500rpm) | WP-DF225MN | IE3 Efficiency | B3 Foot Mounted |
| 250W514055 | W Cast Iron | 55 | 4 Pole (1500rpm) | WP-DF250SP | IE3 Efficiency | B3 Foot Mounted |
| 250W934075 | W Cast Iron | 75 | 4 Pole (1500rpm) | WP-DF250MN | IE3 Efficiency | B3 Foot Mounted |
| 280W514090 | W Cast Iron | 90 | 4 Pole (1500rpm) | WP-DF280SN | IE3 Efficiency | B3 Foot Mounted |
| 280W944110 | W Cast Iron | 110 | 4 Pole (1500rpm) | WP-DF280MN | IE3 Efficiency | B3 Foot Mounted |
| 315W514132 | W Cast Iron | 132 | 4 Pole (1500rpm) | WP-DF315SN | IE3 Efficiency | B3 Foot Mounted |
| 315W514160 | W Cast Iron | 160 | 4 Pole (1500rpm) | WP-DF315MP | IE3 Efficiency | B3 Foot Mounted |
| 315W514200 | W Cast Iron | 200 | 4 Pole (1500rpm) | WP-DF315LN | IE3 Efficiency | B3 Foot Mounted |
| 355W514225 | W Cast Iron | 225 | 4 Pole (1500rpm) | WP-DF355SG | IE3 Efficiency | B3 Foot Mounted |
| 355W514250 | W Cast Iron | 250 | 4 Pole (1500rpm) | WP-DF355SJ | IE3 Efficiency | B3 Foot Mounted |
| 355W514280 | W Cast Iron | 280 | 4 Pole (1500rpm) | WP-DF355SN | IE3 Efficiency | B3 Foot Mounted |
| 355W514315 | W Cast Iron | 315 | 4 Pole (1500rpm) | WP-DF355MJ | IE3 Efficiency | B3 Foot Mounted |
| 355W514355 | W Cast Iron | 355 | 4 Pole (1500rpm) | WP-DF355MN | IE3 Efficiency | B3 Foot Mounted |
| 355W514375 | W Cast Iron | 375 | 4 Pole (1500rpm) | WP-DF355LN | IE3 Efficiency | B3 Foot Mounted |
| 080W208510T | W Cast Iron | 0.75 | 4 Pole (1500rpm) | WP-DF80MS-D | IE3 Efficiency | B5 D Flange Mounted |
| 090W228510T | W Cast Iron | 1.1 | 4 Pole (1500rpm) | WP-DF90LTX-D | IE3 Efficiency | B5 D Flange Mounted |
| 090W228511T | W Cast Iron | 1.5 | 4 Pole (1500rpm) | WP-DF90LWX-D | IE3 Efficiency | B5 D Flange Mounted |
| 100W248510T | W Cast Iron | 2.2 | 4 Pole (1500rpm) | WP-DF100LRF-D | IE3 Efficiency | B5 D Flange Mounted |
| 100W248511T | W Cast Iron | 3 | 4 Pole (1500rpm) | WP-DF100LTF-D | IE3 Efficiency | B5 D Flange Mounted |
| 112W268510T | W Cast Iron | 4 | 4 Pole (1500rpm) | WP-DF112MWX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328510T | W Cast Iron | 5.5 | 4 Pole (1500rpm) | WP-DF132STX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328511T | W Cast Iron | 7.5 | 4 Pole (1500rpm) | WP-DF132MVX-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418510T | W Cast Iron | 11 | 4 Pole (1500rpm) | WP-DF160MR-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418511T | W Cast Iron | 15 | 4 Pole (1500rpm) | WP-DF160LU-D | IE3 Efficiency | B5 D Flange Mounted |
| 180W478510T | W Cast Iron | 18.5 | 4 Pole (1500rpm) | WP-DF180ME-D | IE3 Efficiency | B5 D Flange Mounted |
| 180W478511T | W Cast Iron | 22 | 4 Pole (1500rpm) | WP-DF180LM-D | IE3 Efficiency | B5 D Flange Mounted |
| 200W500376 | W Cast Iron | 30 | 4 Pole (1500rpm) | WP-DF200LPX-D | IE3 Efficiency | B5 D Flange Mounted |
| 225W500254 | W Cast Iron | 37 | 4 Pole (1500rpm) | WP-DF225SR-D | IE3 Efficiency | B5 D Flange Mounted |
| 225W500274 | W Cast Iron | 45 | 4 Pole (1500rpm) | WP-DF225MN-D | IE3 Efficiency | B5 D Flange Mounted |
| 250W500250 | W Cast Iron | 55 | 4 Pole (1500rpm) | WP-DF250SP-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 75 | 4 Pole (1500rpm) | WP-DF250MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 90 | 4 Pole (1500rpm) | WP-DF280SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 110 | 4 Pole (1500rpm) | WP-DF280MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 132 | 4 Pole (1500rpm) | WP-DF315SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 160 | 4 Pole (1500rpm) | WP-DF315MP-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 200 | 4 Pole (1500rpm) | WP-DF315LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 225 | 4 Pole (1500rpm) | WP-DF355SG-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 250 | 4 Pole (1500rpm) | WP-DF355SJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 280 | 4 Pole (1500rpm) | WP-DF355SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 315 | 4 Pole (1500rpm) | WP-DF355MJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 355 | 4 Pole (1500rpm) | WP-DF355MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 375 | 4 Pole (1500rpm) | WP-DF355LN-D | IE3 Efficiency | B5 D Flange Mounted |
| 090W227700T | W Cast Iron | 0.75 | 6 Pole (1000rpm) | WP-DF90LWX | IE3 Efficiency | B3 Foot Mounted |
| 100W248700T | W Cast Iron | 1.5 | 6 Pole (1000rpm) | WP-DF100LTF | IE3 Efficiency | B3 Foot Mounted |
| 112W268700T | W Cast Iron | 2.2 | 6 Pole (1000rpm) | WP-DF112MWX | IE3 Efficiency | B3 Foot Mounted |
| 132W328700T | W Cast Iron | 3 | 6 Pole (1000rpm) | WP-DF132SMX | IE3 Efficiency | B3 Foot Mounted |
| 132W328701T | W Cast Iron | 4 | 6 Pole (1000rpm) | WP-DF132MTX | IE3 Efficiency | B3 Foot Mounted |
| 132W328702T | W Cast Iron | 5.5 | 6 Pole (1000rpm) | WP-DF132MVX | IE3 Efficiency | B3 Foot Mounted |
| 160W418700T | W Cast Iron | 7.5 | 6 Pole (1000rpm) | WP-DF160MM | IE3 Efficiency | B3 Foot Mounted |
| 160W418701T | W Cast Iron | 11 | 6 Pole (1000rpm) | WP-DF160LV | IE3 Efficiency | B3 Foot Mounted |
| 180W478700T | W Cast Iron | 15 | 6 Pole (1000rpm) | WP-DF180LM | IE3 Efficiency | B3 Foot Mounted |
| 200W516018 | W Cast Iron | 18.5 | 6 Pole (1000rpm) | WP-DF200LNX | IE3 Efficiency | B3 Foot Mounted |
| 200W516022 | W Cast Iron | 22 | 6 Pole (1000rpm) | WP-DF200LN | IE3 Efficiency | B3 Foot Mounted |
| 225W516030 | W Cast Iron | 30 | 6 Pole (1000rpm) | WP-DF225MN | IE3 Efficiency | B3 Foot Mounted |
| 250W516037 | W Cast Iron | 37 | 6 Pole (1000rpm) | WP-DF250SN | IE3 Efficiency | B3 Foot Mounted |
| 250W516045 | W Cast Iron | 45 | 6 Pole (1000rpm) | WP-DF250MN | IE3 Efficiency | B3 Foot Mounted |
| 280W516055 | W Cast Iron | 55 | 6 Pole (1000rpm) | WP-DF280SN | IE3 Efficiency | B3 Foot Mounted |
| 280W946075 | W Cast Iron | 75 | 6 Pole (1000rpm) | WP-DF280MN | IE3 Efficiency | B3 Foot Mounted |
| 315W516090 | W Cast Iron | 90 | 6 Pole (1000rpm) | WP-DF315SN | IE3 Efficiency | B3 Foot Mounted |
| 315W516110 | W Cast Iron | 110 | 6 Pole (1000rpm) | WP-DF315MN | IE3 Efficiency | B3 Foot Mounted |
| 315W516132 | W Cast Iron | 132 | 6 Pole (1000rpm) | WP-DF315LN | IE3 Efficiency | B3 Foot Mounted |
| 355W516150 | W Cast Iron | 150 | 6 Pole (1000rpm) | WP-DF355SG | IE3 Efficiency | B3 Foot Mounted |
| 355W516160 | W Cast Iron | 160 | 6 Pole (1000rpm) | WP-DF355SG | IE3 Efficiency | B3 Foot Mounted |
| 355W516185 | W Cast Iron | 185 | 6 Pole (1000rpm) | WP-DF355SJ | IE3 Efficiency | B3 Foot Mounted |
| 355W516200 | W Cast Iron | 200 | 6 Pole (1000rpm) | WP-DF355SP | IE3 Efficiency | B3 Foot Mounted |
| 355W516225 | W Cast Iron | 225 | 6 Pole (1000rpm) | WP-DF355MJ | IE3 Efficiency | B3 Foot Mounted |
| 355W516250 | W Cast Iron | 250 | 6 Pole (1000rpm) | WP-DF355MN | IE3 Efficiency | B3 Foot Mounted |
| 355W516280 | W Cast Iron | 280 | 6 Pole (1000rpm) | WP-DF355LJ | IE3 Efficiency | B3 Foot Mounted |
| 355W516315 | W Cast Iron | 315 | 6 Pole (1000rpm) | WP-DF355LN | IE3 Efficiency | B3 Foot Mounted |
| 090W227710T | W Cast Iron | 0.75 | 6 Pole (1000rpm) | WP-DF90LWX-D | IE3 Efficiency | B5 D Flange Mounted |
| 100W248710T | W Cast Iron | 1.5 | 6 Pole (1000rpm) | WP-DF100LTF-D | IE3 Efficiency | B5 D Flange Mounted |
| 112W268710T | W Cast Iron | 2.2 | 6 Pole (1000rpm) | WP-DF112MWX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328710T | W Cast Iron | 3 | 6 Pole (1000rpm) | WP-DF132SMX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328711T | W Cast Iron | 4 | 6 Pole (1000rpm) | WP-DF132MTX-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328712T | W Cast Iron | 5.5 | 6 Pole (1000rpm) | WP-DF132MVX-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418710T | W Cast Iron | 7.5 | 6 Pole (1000rpm) | WP-DF160MM-D | IE3 Efficiency | B5 D Flange Mounted |
| 160W418711T | W Cast Iron | 11 | 6 Pole (1000rpm) | WP-DF160LV-D | IE3 Efficiency | B5 D Flange Mounted |
| 180W478710T | W Cast Iron | 15 | 6 Pole (1000rpm) | WP-DF180LM-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 18.5 | 6 Pole (1000rpm) | WP-DF200LNX-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 22 | 6 Pole (1000rpm) | WP-DF200LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 30 | 6 Pole (1000rpm) | WP-DF225MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 37 | 6 Pole (1000rpm) | WP-DF250SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 45 | 6 Pole (1000rpm) | WP-DF250MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 55 | 6 Pole (1000rpm) | WP-DF280SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 75 | 6 Pole (1000rpm) | WP-DF280MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 90 | 6 Pole (1000rpm) | WP-DF315SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 110 | 6 Pole (1000rpm) | WP-DF315MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 132 | 6 Pole (1000rpm) | WP-DF315LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 150 | 6 Pole (1000rpm) | WP-DF355SG-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 160 | 6 Pole (1000rpm) | WP-DF355SG-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 185 | 6 Pole (1000rpm) | WP-DF355SJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 200 | 6 Pole (1000rpm) | WP-DF355SP-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 225 | 6 Pole (1000rpm) | WP-DF355MJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 250 | 6 Pole (1000rpm) | WP-DF355MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 280 | 6 Pole (1000rpm) | WP-DF355LJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 315 | 6 Pole (1000rpm) | WP-DF355LN-D | IE3 Efficiency | B5 D Flange Mounted |
| 132W328900T | W Cast Iron | 2.2 | 8 Pole (750rpm) | WP-DF132MT | IE3 Efficiency | B3 Foot Mounted |
| 160W418900T | W Cast Iron | 3 | 8 Pole (750rpm) | WP-DF160ME | IE3 Efficiency | B3 Foot Mounted |
| 160W418901T | W Cast Iron | 4 | 8 Pole (750rpm) | WP-DF160MM | IE3 Efficiency | B3 Foot Mounted |
| 160W418902T | W Cast Iron | 5.5 | 8 Pole (750rpm) | WP-DF160LV | IE3 Efficiency | B3 Foot Mounted |
| 160W418903T | W Cast Iron | 7.5 | 8 Pole (750rpm) | WP-DF160LX | IE3 Efficiency | B3 Foot Mounted |
| 180W478900T | W Cast Iron | 11 | 8 Pole (750rpm) | WP-DF180LR | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 15 | 8 Pole (750rpm) | WP-DF200LN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 18.5 | 8 Pole (750rpm) | WP-DF225SN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 22 | 8 Pole (750rpm) | WP-DF225MN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 30 | 8 Pole (750rpm) | WP-DF250SN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 37 | 8 Pole (750rpm) | WP-DF250MN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 45 | 8 Pole (750rpm) | WP-DF280SN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 55 | 8 Pole (750rpm) | WP-DF280MN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 75 | 8 Pole (750rpm) | WP-DF315SN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 90 | 8 Pole (750rpm) | WP-DF315MN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 110 | 8 Pole (750rpm) | WP-DF315LN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 132 | 8 Pole (750rpm) | WP-DF355SJ | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 150 | 8 Pole (750rpm) | WP-DF355SN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 160 | 8 Pole (750rpm) | WP-DF355SN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 185 | 8 Pole (750rpm) | WP-DF355MJ | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 200 | 8 Pole (750rpm) | WP-DF355MN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 225 | 8 Pole (750rpm) | WP-DF355LN | IE3 Efficiency | B3 Foot Mounted |
| tba | W Cast Iron | 2.2 | 8 Pole (750rpm) | WP-DF132MT-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 3 | 8 Pole (750rpm) | WP-DF160ME-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 4 | 8 Pole (750rpm) | WP-DF160MM-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 5.5 | 8 Pole (750rpm) | WP-DF160LV-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 7.5 | 8 Pole (750rpm) | WP-DF160LX-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 11 | 8 Pole (750rpm) | WP-DF180LR-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 15 | 8 Pole (750rpm) | WP-DF200LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 18.5 | 8 Pole (750rpm) | WP-DF225SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 22 | 8 Pole (750rpm) | WP-DF225MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 30 | 8 Pole (750rpm) | WP-DF250SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 37 | 8 Pole (750rpm) | WP-DF250MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 45 | 8 Pole (750rpm) | WP-DF280SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 55 | 8 Pole (750rpm) | WP-DF280MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 75 | 8 Pole (750rpm) | WP-DF315SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 90 | 8 Pole (750rpm) | WP-DF315MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 110 | 8 Pole (750rpm) | WP-DF315LN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 132 | 8 Pole (750rpm) | WP-DF355SJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 150 | 8 Pole (750rpm) | WP-DF355SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 160 | 8 Pole (750rpm) | WP-DF355SN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 185 | 8 Pole (750rpm) | WP-DF355MJ-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 200 | 8 Pole (750rpm) | WP-DF355MN-D | IE3 Efficiency | B5 D Flange Mounted |
| tba | W Cast Iron | 225 | 8 Pole (750rpm) | WP-DF355LN-D | IE3 Efficiency | B5 D Flange Mounted |
| 080W207300T | W Cast Iron | 0.75 | 2 Pole (3000rpm) | WU-DF80MJ | IE2 Efficiency | B3 Foot Mounted |
| 080W207301T | W Cast Iron | 1.1 | 2 Pole (3000rpm) | WU-DF80MM | IE2 Efficiency | B3 Foot Mounted |
| 090W227300T | W Cast Iron | 1.5 | 2 Pole (3000rpm) | WU-DF90LMX | IE2 Efficiency | B3 Foot Mounted |
| 090W227301T | W Cast Iron | 2.2 | 2 Pole (3000rpm) | WU-DF90LSX | IE2 Efficiency | B3 Foot Mounted |
| 100W247300T | W Cast Iron | 3 | 2 Pole (3000rpm) | WU-DF100LR | IE2 Efficiency | B3 Foot Mounted |
| 112W267300T | W Cast Iron | 4 | 2 Pole (3000rpm) | WU-DF112MM | IE2 Efficiency | B3 Foot Mounted |
| 132W327300T | W Cast Iron | 5.5 | 2 Pole (3000rpm) | WU-DF132SE | IE2 Efficiency | B3 Foot Mounted |
| 132W327301T | W Cast Iron | 7.5 | 2 Pole (3000rpm) | WU-DF132SJ | IE2 Efficiency | B3 Foot Mounted |
| 160W417300T | W Cast Iron | 11 | 2 Pole (3000rpm) | WU-DF160MB | IE2 Efficiency | B3 Foot Mounted |
| 160W417301T | W Cast Iron | 15 | 2 Pole (3000rpm) | WU-DF160MJ | IE2 Efficiency | B3 Foot Mounted |
| 160W417302T | W Cast Iron | 18.5 | 2 Pole (3000rpm) | WU-DF160LR | IE2 Efficiency | B3 Foot Mounted |
| 180W477300T | W Cast Iron | 22 | 2 Pole (3000rpm) | WU-DF180ME | IE2 Efficiency | B3 Foot Mounted |
| 200W911213 | W Cast Iron | 30 | 2 Pole (3000rpm) | W-DF200LGX | IE2 Efficiency | B3 Foot Mounted |
| 200W911212 | W Cast Iron | 37 | 2 Pole (3000rpm) | W-DF200LNX | IE2 Efficiency | B3 Foot Mounted |
| 225W921202 | W Cast Iron | 45 | 2 Pole (3000rpm) | W-DF225MN | IE2 Efficiency | B3 Foot Mounted |
| 250W931205 | W Cast Iron | 55 | 2 Pole (3000rpm) | W-DF250SN | IE2 Efficiency | B3 Foot Mounted |
| 250W931206 | W Cast Iron | 75 | 2 Pole (3000rpm) | W-DF250MN | IE2 Efficiency | B3 Foot Mounted |
| 280W941207 | W Cast Iron | 90 | 2 Pole (3000rpm) | W-DF280SN | IE2 Efficiency | B3 Foot Mounted |
| 280W941209 | W Cast Iron | 110 | 2 Pole (3000rpm) | W-DF280MN | IE2 Efficiency | B3 Foot Mounted |
| 315W951209 | W Cast Iron | 132 | 2 Pole (3000rpm) | W-DF315SN | IE2 Efficiency | B3 Foot Mounted |
| 315W951207 | W Cast Iron | 150 | 2 Pole (3000rpm) | W-DF315MN | IE2 Efficiency | B3 Foot Mounted |
| - | W Cast Iron | 160 | 2 Pole (3000rpm) | W-DF315MP | IE2 Efficiency | B3 Foot Mounted |
| 315W951208 | W Cast Iron | 185 | 2 Pole (3000rpm) | W-DF315LN | IE2 Efficiency | B3 Foot Mounted |
| 315W001228 | W Cast Iron | 200 | 2 Pole (3000rpm) | W-DF315LN | IE2 Efficiency | B3 Foot Mounted |
| - - - - - - | W Cast Iron | 225 | 2 Pole (3000rpm) | W-DF355SG | IE2 Efficiency | B3 Foot Mounted |
| W Cast Iron | 250 | 2 Pole (3000rpm) | W-DF355SJ | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 280 | 2 Pole (3000rpm) | W-DF355SN | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 315 | 2 Pole (3000rpm) | W-DF355MJ | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 355 | 2 Pole (3000rpm) | W-DF355MN | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 400 | 2 Pole (3000rpm) | W-DF355LN † | IE2 Efficiency | B3 Foot Mounted | |
| 080W207310T | W Cast Iron | 0.75 | 2 Pole (3000rpm) | WU-DF80MJ-D | IE2 Efficiency | B5 D Flange Mounted |
| 080W207311T | W Cast Iron | 1.1 | 2 Pole (3000rpm) | WU-DF80MM-D | IE2 Efficiency | B5 D Flange Mounted |
| 090W227310T | W Cast Iron | 1.5 | 2 Pole (3000rpm) | WU-DF90LMX-D | IE2 Efficiency | B5 D Flange Mounted |
| 090W227311T | W Cast Iron | 2.2 | 2 Pole (3000rpm) | WU-DF90LSX-D | IE2 Efficiency | B5 D Flange Mounted |
| 100W247310T | W Cast Iron | 3 | 2 Pole (3000rpm) | WU-DF100LR-D | IE2 Efficiency | B5 D Flange Mounted |
| 112W267310T | W Cast Iron | 4 | 2 Pole (3000rpm) | WU-DF112MM-D | IE2 Efficiency | B5 D Flange Mounted |
| 132W327310T | W Cast Iron | 5.5 | 2 Pole (3000rpm) | WU-DF132SE-D | IE2 Efficiency | B5 D Flange Mounted |
| 132W327311T | W Cast Iron | 7.5 | 2 Pole (3000rpm) | WU-DF132SJ-D | IE2 Efficiency | B5 D Flange Mounted |
| 160W417310T | W Cast Iron | 11 | 2 Pole (3000rpm) | WU-DF160MB-D | IE2 Efficiency | B5 D Flange Mounted |
| 160W417311T | W Cast Iron | 15 | 2 Pole (3000rpm) | WU-DF160MJ-D | IE2 Efficiency | B5 D Flange Mounted |
| 160W417312T | W Cast Iron | 18.5 | 2 Pole (3000rpm) | WU-DF160LR-D | IE2 Efficiency | B5 D Flange Mounted |
| 180W477310T | W Cast Iron | 22 | 2 Pole (3000rpm) | WU-DF180ME-D | IE2 Efficiency | B5 D Flange Mounted |
| 080W207500T | W Cast Iron | 0.75 | 4 Pole (1500rpm) | WU-DF80MS | IE2 Efficiency | B3 Foot Mounted |
| 090W227500T | W Cast Iron | 1.1 | 4 Pole (1500rpm) | WU-DF90LRX | IE2 Efficiency | B3 Foot Mounted |
| 090W227501T | W Cast Iron | 1.5 | 4 Pole (1500rpm) | WU-DF90LWX | IE2 Efficiency | B3 Foot Mounted |
| 100W247500T | W Cast Iron | 2.2 | 4 Pole (1500rpm) | WU-DF100LS | IE2 Efficiency | B3 Foot Mounted |
| 100W247501T | W Cast Iron | 3 | 4 Pole (1500rpm) | WU-DF100LTF | IE2 Efficiency | B3 Foot Mounted |
| 112W267500T | W Cast Iron | 4 | 4 Pole (1500rpm) | WU-DF112MWX | IE2 Efficiency | B3 Foot Mounted |
| 132W327500T | W Cast Iron | 5.5 | 4 Pole (1500rpm) | WU-DF132STX | IE2 Efficiency | B3 Foot Mounted |
| 132W327501T | W Cast Iron | 7.5 | 4 Pole (1500rpm) | WU-DF132MVX | IE2 Efficiency | B3 Foot Mounted |
| 160W417500T | W Cast Iron | 11 | 4 Pole (1500rpm) | WU-DF160MJ | IE2 Efficiency | B3 Foot Mounted |
| 160W417501T | W Cast Iron | 15 | 4 Pole (1500rpm) | WU-DF160LR | IE2 Efficiency | B3 Foot Mounted |
| 180W477500T | W Cast Iron | 18.5 | 4 Pole (1500rpm) | WU-DF180ME | IE2 Efficiency | B3 Foot Mounted |
| 180W477501T | W Cast Iron | 22 | 4 Pole (1500rpm) | WU-DF180LJ | IE2 Efficiency | B3 Foot Mounted |
| 200W911405 | W Cast Iron | 30 | 4 Pole (1500rpm) | W-DF200LNX | IE2 Efficiency | B3 Foot Mounted |
| 225W921405 | W Cast Iron | 37 | 4 Pole (1500rpm) | W-DF225SN | IE2 Efficiency | B3 Foot Mounted |
| 225W921406 | W Cast Iron | 45 | 4 Pole (1500rpm) | W-DF225MN | IE2 Efficiency | B3 Foot Mounted |
| 250W931406 | W Cast Iron | 55 | 4 Pole (1500rpm) | W-DF250SN | IE2 Efficiency | B3 Foot Mounted |
| 250W931407 | W Cast Iron | 75 | 4 Pole (1500rpm) | W-DF250MN | IE2 Efficiency | B3 Foot Mounted |
| 280W941407 | W Cast Iron | 90 | 4 Pole (1500rpm) | W-DF280SN | IE2 Efficiency | B3 Foot Mounted |
| 280W941408 | W Cast Iron | 110 | 4 Pole (1500rpm) | W-DF280MN | IE2 Efficiency | B3 Foot Mounted |
| 315W951409 | W Cast Iron | 132 | 4 Pole (1500rpm) | W-DF315SN | IE2 Efficiency | B3 Foot Mounted |
| 315W951407 | W Cast Iron | 150 | 4 Pole (1500rpm) | W-DF315MN | IE2 Efficiency | B3 Foot Mounted |
| - | W Cast Iron | 160 | 4 Pole (1500rpm) | W-DF315MP | IE2 Efficiency | B3 Foot Mounted |
| 315W951408 | W Cast Iron | 185 | 4 Pole (1500rpm) | W-DF315LN | IE2 Efficiency | B3 Foot Mounted |
| 315W001132 | W Cast Iron | 200 | 4 Pole (1500rpm) | W-DF315LN | IE2 Efficiency | B3 Foot Mounted |
| - | W Cast Iron | 225 | 4 Pole (1500rpm) | W-DF355SG | IE2 Efficiency | B3 Foot Mounted |
| 355W961405 | W Cast Iron | 250 | 4 Pole (1500rpm) | W-DF355SJ | IE2 Efficiency | B3 Foot Mounted |
| - | W Cast Iron | 280 | 4 Pole (1500rpm) | W-DF355SN | IE2 Efficiency | B3 Foot Mounted |
| 355W961406 | W Cast Iron | 315 | 4 Pole (1500rpm) | W-DF355MJ | IE2 Efficiency | B3 Foot Mounted |
| 355W961407 | W Cast Iron | 355 | 4 Pole (1500rpm) | W-DF355MN | IE2 Efficiency | B3 Foot Mounted |
| 355W961408 | W Cast Iron | 400 | 4 Pole (1500rpm) | W-DF355LN † | IE2 Efficiency | B3 Foot Mounted |
| 080W207510T | W Cast Iron | 0.75 | 4 Pole (1500rpm) | WU-DF80MS-D | IE2 Efficiency | B5 D Flange Mounted |
| 090W227510T | W Cast Iron | 1.1 | 4 Pole (1500rpm) | WU-DF90LRX-D | IE2 Efficiency | B5 D Flange Mounted |
| 090W227511T | W Cast Iron | 1.5 | 4 Pole (1500rpm) | WU-DF90LWX-D | IE2 Efficiency | B5 D Flange Mounted |
| 100W247510T | W Cast Iron | 2.2 | 4 Pole (1500rpm) | WU-DF100LS-D | IE2 Efficiency | B5 D Flange Mounted |
| 100W247511T | W Cast Iron | 3 | 4 Pole (1500rpm) | WU-DF100LTF-D | IE2 Efficiency | B5 D Flange Mounted |
| 112W267510T | W Cast Iron | 4 | 4 Pole (1500rpm) | WU-DF112MWX-D | IE2 Efficiency | B5 D Flange Mounted |
| 132W327510T | W Cast Iron | 5.5 | 4 Pole (1500rpm) | WU-DF132STX-D | IE2 Efficiency | B5 D Flange Mounted |
| 132W327511T | W Cast Iron | 7.5 | 4 Pole (1500rpm) | WU-DF132MVX-D | IE2 Efficiency | B5 D Flange Mounted |
| 160W417510T | W Cast Iron | 11 | 4 Pole (1500rpm) | WU-DF160MJ-D | IE2 Efficiency | B5 D Flange Mounted |
| 160W417511T | W Cast Iron | 15 | 4 Pole (1500rpm) | WU-DF160LR-D | IE2 Efficiency | B5 D Flange Mounted |
| 180W477510T | W Cast Iron | 18.5 | 4 Pole (1500rpm) | WU-DF180ME-D | IE2 Efficiency | B5 D Flange Mounted |
| 180W477511T | W Cast Iron | 22 | 4 Pole (1500rpm) | WU-DF180LJ-D | IE2 Efficiency | B5 D Flange Mounted |
| W Cast Iron | 30 | 4 Pole (1500rpm) | W-DF200LNX-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 37 | 4 Pole (1500rpm) | W-DF225SN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 45 | 4 Pole (1500rpm) | W-DF225MN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 55 | 4 Pole (1500rpm) | W-DF250SN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 75 | 4 Pole (1500rpm) | W-DF250MN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 90 | 4 Pole (1500rpm) | W-DF280SN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 110 | 4 Pole (1500rpm) | W-DF280MN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 132 | 4 Pole (1500rpm) | W-DF315SN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 150 | 4 Pole (1500rpm) | W-DF315MN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 160 | 4 Pole (1500rpm) | W-DF315MP-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 185 | 4 Pole (1500rpm) | W-DF315LN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 200 | 4 Pole (1500rpm) | W-DF315LN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 225 | 4 Pole (1500rpm) | W-DF355SG-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 250 | 4 Pole (1500rpm) | W-DF355SJ-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 280 | 4 Pole (1500rpm) | W-DF355SN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 315 | 4 Pole (1500rpm) | W-DF355MJ-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 355 | 4 Pole (1500rpm) | W-DF355MN-D | IE2 Efficiency | B5 D Flange Mounted | |
| W Cast Iron | 400 | 4 Pole (1500rpm) | W-DF355LN-D † | IE2 Efficiency | B5 D Flange Mounted | |
| 090W227700T | W Cast Iron | 0.75 | 6 Pole (1000rpm) | WU-DF90LTX | IE2 Efficiency | B3 Foot Mounted |
| 090W227701T | W Cast Iron | 1.1 | 6 Pole (1000rpm) | WU-DF90LWX | IE2 Efficiency | B3 Foot Mounted |
| 100W247700T | W Cast Iron | 1.5 | 6 Pole (1000rpm) | WU-DF100LSF | IE2 Efficiency | B3 Foot Mounted |
| 112W267700T | W Cast Iron | 2.2 | 6 Pole (1000rpm) | WU-DF112MT | IE2 Efficiency | B3 Foot Mounted |
| 132W327700T | W Cast Iron | 3 | 6 Pole (1000rpm) | WU-DF132SL | IE2 Efficiency | B3 Foot Mounted |
| 132W327701T | W Cast Iron | 4 | 6 Pole (1000rpm) | WU-DF132MM | IE2 Efficiency | B3 Foot Mounted |
| 132W327702T | W Cast Iron | 5.5 | 6 Pole (1000rpm) | WU-DF132MR | IE2 Efficiency | B3 Foot Mounted |
| 160W417700T | W Cast Iron | 7.5 | 6 Pole (1000rpm) | WU-DF160MM | IE2 Efficiency | B3 Foot Mounted |
| 160W417701T | W Cast Iron | 11 | 6 Pole (1000rpm) | WU-DF160LV | IE2 Efficiency | B3 Foot Mounted |
| 180W477700T | W Cast Iron | 15 | 6 Pole (1000rpm) | WU-DF180LM | IE2 Efficiency | B3 Foot Mounted |
| 200W911604 | W Cast Iron | 18.5 | 6 Pole (1000rpm) | W-DF200LGX | IE2 Efficiency | B3 Foot Mounted |
| 200W911605 | W Cast Iron | 22 | 6 Pole (1000rpm) | W-DF200LNX | IE2 Efficiency | B3 Foot Mounted |
| 225W921603 | W Cast Iron | 30 | 6 Pole (1000rpm) | W-DF225MN | IE2 Efficiency | B3 Foot Mounted |
| 250W931604 | W Cast Iron | 37 | 6 Pole (1000rpm) | W-DF250SN | IE2 Efficiency | B3 Foot Mounted |
| 250W931602 | W Cast Iron | 45 | 6 Pole (1000rpm) | W-DF250MN | IE2 Efficiency | B3 Foot Mounted |
| 280W941601 | W Cast Iron | 55 | 6 Pole (1000rpm) | W-DF280SN | IE2 Efficiency | B3 Foot Mounted |
| 280W941603 | W Cast Iron | 75 | 6 Pole (1000rpm) | W-DF280MN | IE2 Efficiency | B3 Foot Mounted |
| 315W951604 | W Cast Iron | 90 | 6 Pole (1000rpm) | W-DF315SN | IE2 Efficiency | B3 Foot Mounted |
| 315W951602 | W Cast Iron | 110 | 6 Pole (1000rpm) | W-DF315MN | IE2 Efficiency | B3 Foot Mounted |
| 315W951603 | W Cast Iron | 132 | 6 Pole (1000rpm) | W-DF315LN | IE2 Efficiency | B3 Foot Mounted |
| - - - - - - - - | W Cast Iron | 150 | 6 Pole (1000rpm) | W-DF355SG | IE2 Efficiency | B3 Foot Mounted |
| W Cast Iron | 160 | 6 Pole (1000rpm) | W-DF355SG | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 185 | 6 Pole (1000rpm) | W-DF355SJ | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 200 | 6 Pole (1000rpm) | W-DF355SN | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 225 | 6 Pole (1000rpm) | W-DF355MJ | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 250 | 6 Pole (1000rpm) | W-DF355MN | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 280 | 6 Pole (1000rpm) | W-DF355LJ | IE2 Efficiency | B3 Foot Mounted | |
| W Cast Iron | 315 | 6 Pole (1000rpm) | W-DF355LN | IE2 Efficiency | B3 Foot Mounted | |
| 090W227710T | W Cast Iron | 0.75 | 6 Pole (1000rpm) | WU-DF90LTX-D | IE2 Efficiency | B5 D Flange Mounted |
| 090W227711T | W Cast Iron | 1.1 | 7 Pole (1000rpm) | WU-DF90LWX-D | IE2 Efficiency | B5 D Flange Mounted |
| 100W247710T | W Cast Iron | 1.5 | 8 Pole (1000rpm) | WU-DF100LSF-D | IE2 Efficiency | B5 D Flange Mounted |
| 112W267710T | W Cast Iron | 2.2 | 9 Pole (1000rpm) | WU-DF112MT-D | IE2 Efficiency | B5 D Flange Mounted |
| 132W327710T | W Cast Iron | 3 | 10 Pole (1000rpm) | WU-DF132SL-D | IE2 Efficiency | B5 D Flange Mounted |
| 132W327711T | W Cast Iron | 4 | 11 Pole (1000rpm) | WU-DF132MM-D | IE2 Efficiency | B5 D Flange Mounted |
| 132W327712T | W Cast Iron | 5.5 | 12 Pole (1000rpm) | WU-DF132MR-D | IE2 Efficiency | B5 D Flange Mounted |
| 160W417710T | W Cast Iron | 7.5 | 13 Pole (1000rpm) | WU-DF160MM-D | IE2 Efficiency | B5 D Flange Mounted |
| 160W417711T | W Cast Iron | 11 | 14 Pole (1000rpm) | WU-DF160LV-D | IE2 Efficiency | B5 D Flange Mounted |
| 180W477710T | W Cast Iron | 15 | 15 Pole (1000rpm) | WU-DF180LM-D | IE2 Efficiency | B5 D Flange Mounted |
TECHNICAL LIBRARY
DOWNLOADS
W Cast iron motor catalogue
Full technical data, dimensions and performance curves for the complete W Cast Iron range.
Safety Leaflet
Important customer safety information when installing Brook Crompton motors.
Installation & Maintenance Guide
Guidance on installation, alignment, lubrication and routine checks to maximise motor life.
NEED W CAST IRON MOTORS FAST?
Send us your nameplate details or upload a photo and our Brook Crompton specialists will indentify the correct W Cast Iron motor, confirm availability and provide a quote, usually within 24 hours.
